Tuesday, October 18, 2011

Road trip

                        Ashland WI. city park backed up to Lake Superior.
                                                Hinkley Minnesota
                                                   Pumpkin cannon
                                                Trebuchet with weights
                                              Trebuchet with springs
 Poniatowski WI. Center of northern half of western hemisphere
Web link
                                  Corn on the road...15.9 AFR and 56 MPH
                                                         Weidners in WI
          Larry was working on his coach like a true GMC owner
                                         Lake Michigan in the morning
                                                    Pocahontas Iowa
No gas only E10, E20 and E30! South Dakota

Thursday, October 13, 2011

LED Conversion from Dan G

These LED's need a heat sink. They have double sided tape and fit in the groove of the original fixture. Lamp base has capability of plugging more LED modules in it. Available from
gregg_dan AT hotmail.com ,use LED in subject
These are supposed to be equal an 1156 in lumens. Pretty good!
LED conversion for a bi pin halogen

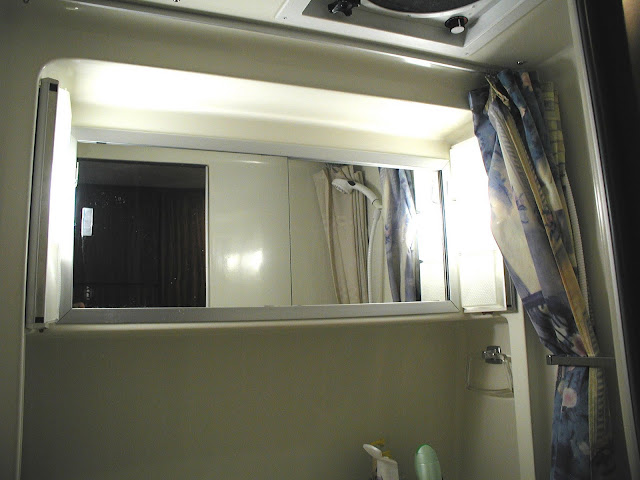

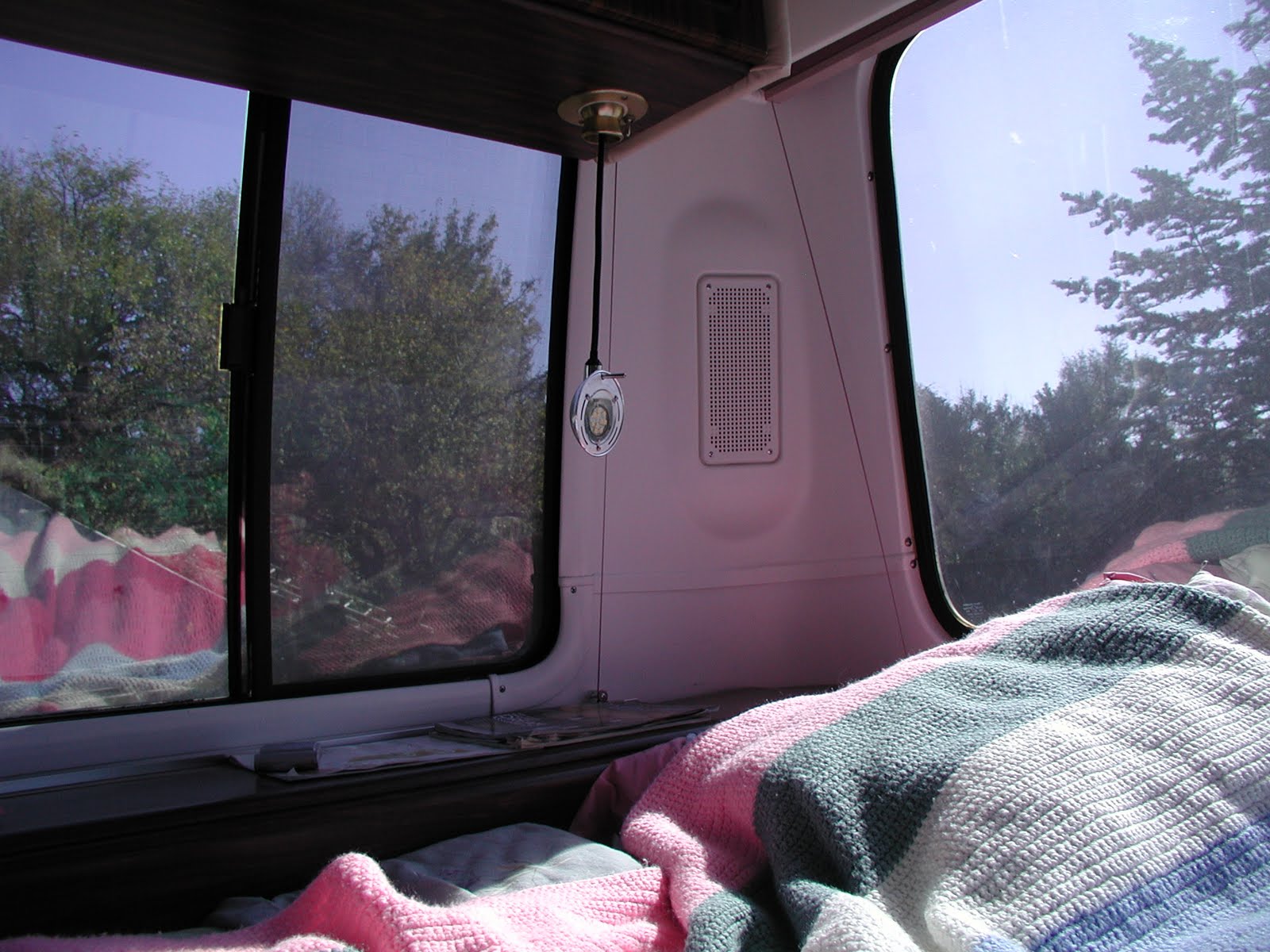

LED on for the reading light. No heat like a halogen.
Red neck propane transfer, Needed to use warm water to get enough of a pressure difference to pop open the fill valve.
Chips in black and white

Tuesday, September 13, 2011

Sight seeing flight over the flood

Missouri river way out of it's banks
 Approach to KOMA. Airport would be under water if there was no dike. Many wells were put in and kept pumping to keep the water table down and save Epply Airfield



Walmart boondockers from Georgia and South Dakota. Big van was present day before too.
Road testing transmission governors and machining new cans for them.

Sunday, September 4, 2011

Junkyard parts run

U pull it tour
U Pull it North yard




Oh man a Toro! don't see many of these. Grabbed the transmission governor.

Checkout... they wanna look in your tool bucket too.

Saturday, July 2, 2011

Raised road, pinched finger and spark coil gap


I-680 and I-29 north of Omaha

I-680 after the flood went down some.


Raised road because of flooding, headed home after work
Pinched finger
Nail finally fell off
No spark, repositioned coil to make gap even and closer. It runs! Nothing to loose.

Saturday, June 18, 2011

I-29 goes under water

Looking south.... This is I-29 north of Crescent Iowa. Image from the rustic chicks blog.

Monday, June 13, 2011

Fort Calhoun Nuke plant and I-29 closed

Gavins Point outfall

Fort Calhoun Nuke power plant is North of Omaha and getting plenty of water

I-29 North of Omaha is flooded and closed. Image is looking north. I-29 is north and south. The overpass is I-680 also closed.
I-29 image taken from rustic chicks blog
http://therusticchick.blogspot.com/

Sunday, June 12, 2011

Missouri flood at 32 feet by Omaha

32 feet trees in the water

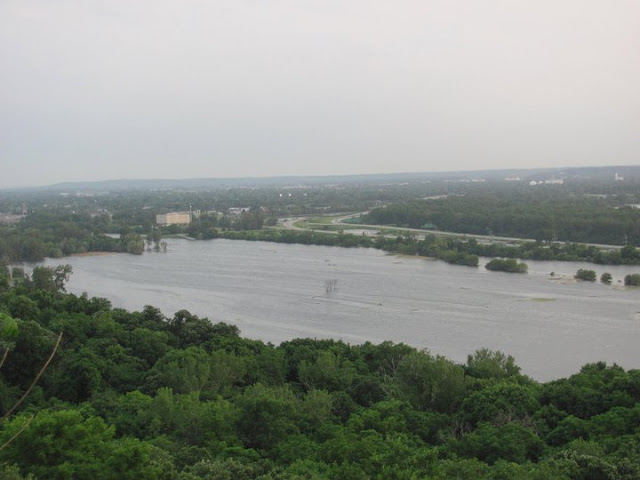

Flooded Missouri river looking South East from the Bluffs on the Iowa side. I-29 (closed) in the middle of the image. Omaha in the background. This image taken from Rustic Chicks blog.
http://therusticchick.blogspot.com/

Sunday, June 5, 2011

Missouri river floods

These images taken around the first of June downtown Omaha. River was at 30 feet level which is flood stage. Supposed to go higher later...

Wednesday, January 26, 2011

Everlast plasma cutter and welder

Trimming 5" channel with plasma cutter. Used 40 amps.
Plasma cutter needs dry air so I used snow for a refrigerant dryer.
Everlast PowerPro 256 combination stick, TIG welder and plasma cutter. A huge bargain for what it does. Wish I had it years ago.
http://www.everlastgenerators.com/welding-equipments.php
Press brake in progress. Bottom dies are next to be made. Welds were done with  1/8" 7018 at 130 amps on the Everlast. Springs are Olds 455 valve springs, two on each side.

Wednesday, January 19, 2011

South Bend shaper oil pump fix and making a press brake die

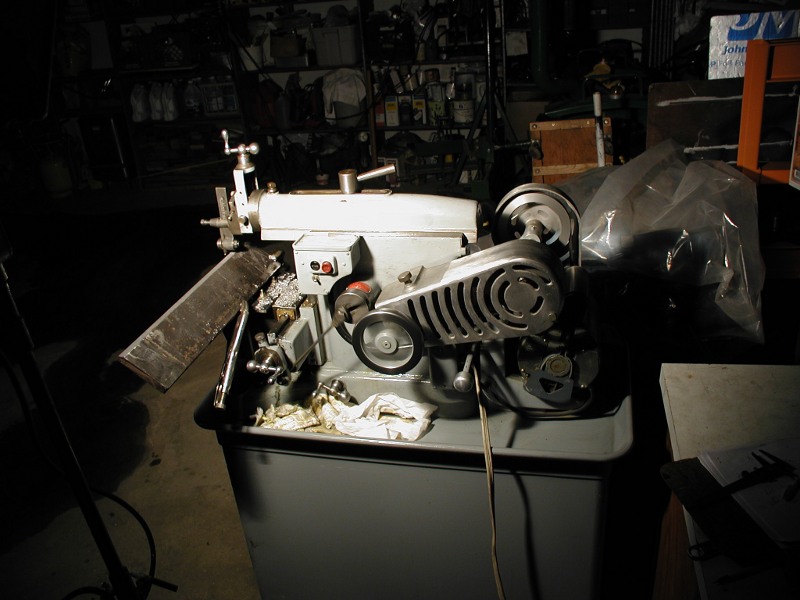

Shaper oil pump has been erratic and it finally quit. Serial number shows it was built in 1959
This lever that actuates the pump quit moving.
Took it apart and found that the lever got out of the cam groove and slipped between the cam and case. Added a few washers so that might not happen again.
The lever is supposed to stay in this eccentric cam groove on the back of the bull gear. I was glad to find the gear is steel and not phenolic plastic like some shapers.
Shaper parts
Tapered pin holds stuff in place



Cutting off parts of the scrap metal I'm going to make the die out of.

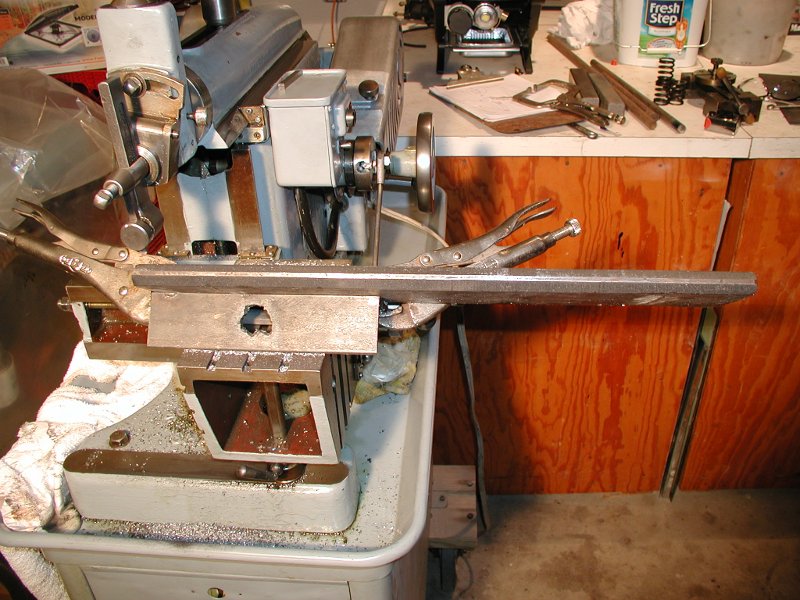

Fixture to make the bevel with. 40 degrees from horizontal.
Cutting the bevel



Short stroke for this. Oil pump stayed working :-)

All done. 80 degree edge for springback making true 90's. Steel for die is 3/4 X 4"



Another motion video
