Friday, July 17, 2009

Trigger wheel and VR sensor mount

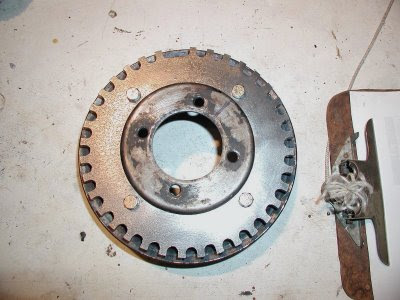

36 -1 tooth trigger wheel mounted on the lower pulley
trigger wheel adapter welded on the lower pulley
Finding TDC and setting the wheel 5 teeth after the missing tooth. The start of the sensor mount is on the front motor mount.
Variable Reluctor sensor in place. The blue mount is plenty stiff and bolts on to the holes where the radiator shroud attached.
